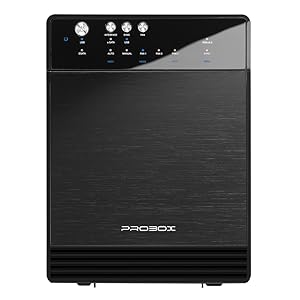

Mediasonic 4 Bay 3.5" SATA Hard Drive Enclosure - USB 3.0 & eSATA Support 16TB HDD (HF7-SU3S3)

3.8 out of 5 stars 77

Currently unavailable.
We don't know when or if this item will be back in stock.
Hardware Interface FireWire eSATA, USB 3.0
Brand Mediasonic
Hardware Platform PC
Material Metal
Item Weight 3.7 Pounds

About this item

  • Support all brand of 3.5" SATA I / II / III hard disk drive up to 16TB per drive, and up to 4 x 16TB. (Not compatible with 4Kn Native Drives)
  • Support SATA 3 6.0Gbps hard drive transfer rate
  • Transfer rate up to 5.0Gbps via USB 3.0, Transfer rate up to 6.0Gbps via eSATA
  • Support S.M.A.R.T. and Power Sync
  • Smart Fan with built-in thermal-sensor, Auto & Manual modes, and 3 speed levels. One button interface selection.

Product information

Feedback

Mediasonic

Mediasonic 4 Bay 3.5" SATA Hard Drive Enclosure - USB 3.0 & eSATA Support 16TB HDD (HF7-SU3S3)


Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?

/
/
/
/
Please sign in to provide feedback.

Product Description

Newly revise front door with Air In-Take Feature

Supporting Operating System:

  • Windows 7 / 8 / 8.1 / 10 (32 / 64bit) (MBR or GPT Partition)
  • Mac OS 10.3 or later

Important Note:

  • 2.5" SATA hard drive is supported; however, adapter bracket is required. (Sold separately, check Amazon ASIN: B073R51B3Y)
  • 4Kn Native Drive is NOT supported
  • Power Disable Feature hard drive is not supported. For example, WD Enterprise HDD, HGST HDD
  • Motherboard eSATA port MUST support Port Multiplier in order for your computer to recognize multiple hard drive if the unit is connect to eSATA port
  • You can ONLY use ONE interface at a time. (Either USB 3.0 or eSATA)

In comparison with HF2-SU3S2 model, the only difference is the exterior case design. All the function and feature are the same.

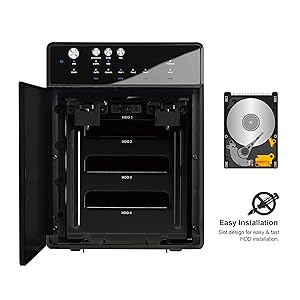

Easy Installation

  • Mediasonic HF7-SU3S3 provides an easy installation of all your hard disks, simply slides the hard disks in the designated slots, easy removal as well, just pull out the disks you wish to remove.  This enclosure is also equipped with magnetic door for a ultra smooth operation, greatly improves both durability and style.

Power Sync Feature:

power sync

  • Power Sync: Power On / off in synchronization with PC Mediasonic HF7-SU3S3 supports auto shut off and auto turn-on function when your PC turns on/off, this will save the hassle to turn on your enclosure when you need it, by putting the unit in "sleep mode" also greatly improves performance and the longevity of your hard disks. However, Power Sync will be disabled due to power failure.

Smart Fan Feature / Dual eSata and USB 3.0 Port / One Button Interface Selection

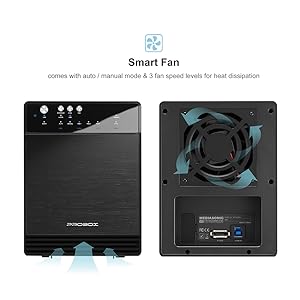

Smart Fan

  • Temperature-Sensor Built-In
  • Auto & Manual mode
  • 3 level of speed The Smart Fan will auto detect the temperature of hard disks in use, and determine the adequate fan speed to properly cooling,

  • Compatible with both PC and  Mac USB 3.0 interface
  • Transfer rate up to 5.0Gbps via USB 3.0
  • Transfer rate up to 6.0Gbps via eSATA. USB 3.0 Port also supports backward compatible function to USB 2.0

  • One Button Interface selection: Switch USB 3.0 or eSATA interface by pressing one button Note:
